import igraph as ig
import kececilayout as kl
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
import networkx as nx
import networkit as nk
import numpy as np
import platform
import rustworkx as rx
from typing import Any, Dict, List, Optional, Tuple, Union
import warnings

# graph-tool sadece Linux'ta import edilsin
if platform.system() == "Linux":
    try:
        import graph_tool.all as gt
        GRAPH_TOOL_AVAILABLE = True
    except ImportError:
        gt = None
        GRAPH_TOOL_AVAILABLE = False
else:
    gt = None
    GRAPH_TOOL_AVAILABLE = False

# Graphillion koşullu import
try:
    import graphillion as gg
    from graphillion import GraphSet
    import itertools
    GRAPHILLION_AVAILABLE = True
except ImportError:
    GRAPHILLION_AVAILABLE = False

def generate_sample_graph(library_type: int, n_nodes: int = 10, directed: bool = False) -> Any:
    """Belirtilen kütüphaneye göre örnek graf oluşturur."""
    if library_type == 1:  # NetworkX
        if directed:
            G = nx.DiGraph()
            for i in range(n_nodes - 1):
                G.add_edge(i, i+1)
        else:
            G = nx.path_graph(n_nodes)
        print(f"✓ NetworkX: {G.number_of_nodes()} düğüm, {G.number_of_edges()} kenar")
        return G

    elif library_type == 2:  # RustworkX
        if directed:
            G = rx.PyDiGraph()
            nodes = G.add_nodes_from(range(n_nodes))
            for i in range(n_nodes - 1):
                G.add_edge(i, i+1, None)
        else:
            G = rx.generators.path_graph(n_nodes)
        print(f"✓ RustworkX: {G.num_nodes()} düğüm, {G.num_edges()} kenar")
        return G

    elif library_type == 3:  # igraph
        G = ig.Graph.Ring(n_nodes, directed=directed, circular=False)
        print(f"✓ igraph: {G.vcount()} düğüm, {G.ecount()} kenar")
        return G

    elif library_type == 4:  # Networkit
        if directed:
            G = nk.graph.Graph(n_nodes, weighted=False, directed=True)
        else:
            G = nk.graph.Graph(n_nodes, weighted=False, directed=False)
        for i in range(n_nodes - 1):
            G.addEdge(i, i+1)
        print(f"✓ Networkit: {G.numberOfNodes()} düğüm, {G.numberOfEdges()} kenar")
        return G

    elif library_type == 5:  # Graphillion
        if not GRAPHILLION_AVAILABLE:
            print("✗ Graphillion kullanılabilir değil, NetworkX'e dönülüyor.")
            return nx.path_graph(min(n_nodes, 5))

        try:
            universe = [(i, i+1) for i in range(1, n_nodes)]
            GraphSet.set_universe(universe)
            gs = GraphSet()
            print(f"✓ Graphillion: {n_nodes} düğüm, {len(universe)} kenar")
            return gs
        except Exception as e:
            print(f"✗ Graphillion hatası: {e} - NetworkX'e dönülüyor.")
            return nx.path_graph(min(n_nodes, 5))

    elif library_type == 6:  # graph-tool
        if not GRAPH_TOOL_AVAILABLE:
            print("✗ graph-tool kullanılabilir değil, NetworkX'e dönülüyor.")
            return nx.path_graph(min(n_nodes, 5))

        try:
            G = gt.Graph(directed=directed)
            G.add_vertex(n_nodes)
            for i in range(n_nodes - 1):
                G.add_edge(G.vertex(i), G.vertex(i+1))
            print(f"✓ graph-tool: {G.num_vertices()} düğüm, {G.num_edges()} kenar")
            return G
        except Exception as e:
            print(f"✗ graph-tool hatası: {e} - NetworkX'e dönülüyor.")
            return nx.path_graph(min(n_nodes, 5))

def get_secondary_start(primary_direction: str) -> str:
    """Birincil yöne göre ikincil yönü belirler."""
    if primary_direction in ['top_down', 'bottom_up']:
        return 'right'
    elif primary_direction in ['left-to-right', 'right-to-left']:
        return 'up'
    else:
        return 'right'

def convert_to_networkx(graph: Any, library_type: int, directed: bool = False) -> nx.Graph:
    """Farklı kütüphane graflarını NetworkX'e dönüştürür."""
    if graph is None:
        if directed:
            return nx.DiGraph([(1, 2), (2, 3)])
        else:
            return nx.path_graph(3)

    try:
        if library_type == 1:  # NetworkX
            return graph

        elif library_type == 2:  # RustworkX
            if directed:
                nx_graph = nx.DiGraph()
            else:
                nx_graph = nx.Graph()
            nx_graph.add_nodes_from(graph.node_indices())
            if hasattr(graph, 'edge_list'):
                nx_graph.add_edges_from(graph.edge_list())
            return nx_graph

        elif library_type == 3:  # igraph
            if directed:
                nx_graph = nx.DiGraph()
            else:
                nx_graph = nx.Graph()
            nx_graph.add_nodes_from([v.index for v in graph.vs])
            nx_graph.add_edges_from(graph.get_edgelist())
            return nx_graph

        elif library_type == 4:  # Networkit
            if directed:
                nx_graph = nx.DiGraph()
            else:
                nx_graph = nx.Graph()
            n_nodes = graph.numberOfNodes()
            nx_graph.add_nodes_from(range(n_nodes))
            for u, v in graph.iterEdges():
                nx_graph.add_edge(u, v)
            return nx_graph

        elif library_type == 5:  # Graphillion
            if directed:
                nx_graph = nx.DiGraph()
            else:
                nx_graph = nx.Graph()
            try:
                if hasattr(graph, 'universe'):
                    edges = list(graph.universe())
                else:
                    edges = []

                if edges:
                    all_nodes = set()
                    for edge in edges:
                        all_nodes.update(edge)
                    nx_graph.add_nodes_from(sorted(all_nodes))
                    nx_graph.add_edges_from(edges)
                else:
                    if n_nodes > 1:
                        simple_edges = [(i, i+1) for i in range(1, min(n_nodes, 100))]
                        if simple_edges:
                            all_nodes = set()
                            for edge in simple_edges:
                                all_nodes.update(edge)
                            nx_graph.add_nodes_from(sorted(all_nodes))
                            nx_graph.add_edges_from(simple_edges)

                if nx_graph.number_of_nodes() == 0:
                    nx_graph.add_edges_from([(1, 2), (2, 3)])
                return nx_graph
            except Exception as e:
                print(f"✗ Graphillion dönüştürme hatası: {e} - basit graf kullanılıyor.")
                return nx.path_graph(5)

        elif library_type == 6:  # graph-tool
            if directed:
                nx_graph = nx.DiGraph()
            else:
                nx_graph = nx.Graph()
            try:
                for v in graph.vertices():
                    nx_graph.add_node(int(v))
                for e in graph.edges():
                    nx_graph.add_edge(int(e.source()), int(e.target()))
                return nx_graph
            except Exception as e:
                print(f"✗ graph-tool dönüştürme hatası: {e} - basit graf kullanılıyor.")
                return nx.path_graph(5)

    except Exception as e:
        print(f"✗ Dönüştürme hatası: {e} - basit graf kullanılıyor.")
        if directed:
            return nx.DiGraph([(1, 2), (2, 3)])
        else:
            return nx.path_graph(3)

def safe_kececi_layout(nx_graph: nx.Graph, layout_params: Dict) -> Dict:
    """Güvenli Keçeci Layout - Graphillion uyumlu."""
    try:
        if nx_graph.number_of_nodes() == 0:
            nx_graph = nx.path_graph(3)

        pos = kl.kececi_layout(nx_graph, **layout_params)
        print(f"✓ Keçeci Layout başarılı: {len(pos)} düğüm")
        return pos

    except Exception as e:
        print(f"✗ Keçeci Layout hatası: {e} - dairesel layout kullanılıyor.")
        return nx.circular_layout(nx_graph)

def generate_3d_helix_layout(nx_graph: nx.Graph, z_spacing: float = 2.0, radius: float = 5.0, turns: float = 2.0) -> Dict:
    """3D sarmal layout oluşturur."""
    nodes = sorted(list(nx_graph.nodes()))
    pos_3d = {}
    total_nodes = len(nodes)

    if total_nodes == 0:
        return pos_3d

    total_angle = 2 * np.pi * turns
    for i, node_id in enumerate(nodes):
        z = i * z_spacing
        angle = (i / (total_nodes - 1)) * total_angle if total_nodes > 1 else 0
        x = np.cos(angle) * radius
        y = np.sin(angle) * radius
        pos_3d[node_id] = (x, y, z)

    return pos_3d

def draw_edges_with_arrows(nx_graph: nx.Graph, pos: Dict, ax: plt.Axes, edge_style: str = 'standard', directed: bool = False) -> None:
    """Kenarları ok başlarıyla çizer."""
    with warnings.catch_warnings():
        warnings.simplefilter('ignore', category=UserWarning)

        if edge_style == 'curved' and directed:
            for edge in nx_graph.edges():
                u, v = edge
                if u in pos and v in pos:
                    arrowprops = dict(
                        arrowstyle='->',
                        color='darkblue',
                        lw=2,
                        alpha=0.7,
                        shrinkA=15,
                        shrinkB=15,
                        connectionstyle='arc3,rad=0.2'
                    )
                    ax.annotate("", xy=pos[v], xycoords='data',
                               xytext=pos[u], textcoords='data',
                               arrowprops=arrowprops)

        elif edge_style == 'curved' and not directed:
            for edge in nx_graph.edges():
                u, v = edge
                if u in pos and v in pos:
                    from matplotlib.patches import FancyArrowPatch
                    arrow = FancyArrowPatch(pos[u], pos[v],
                                          connectionstyle='arc3,rad=0.2',
                                          color='darkblue', alpha=0.7, lw=2,
                                          arrowstyle='-')
                    ax.add_patch(arrow)

        elif directed:
            nx.draw_networkx_edges(
                nx_graph, pos,
                width=2,
                alpha=0.7,
                edge_color='darkred',
                arrows=True,
                arrowsize=20,
                arrowstyle='->',
                ax=ax
            )

        else:
            nx.draw_networkx_edges(
                nx_graph, pos,
                width=2,
                alpha=0.7,
                edge_color='darkblue',
                arrows=False,
                ax=ax
            )

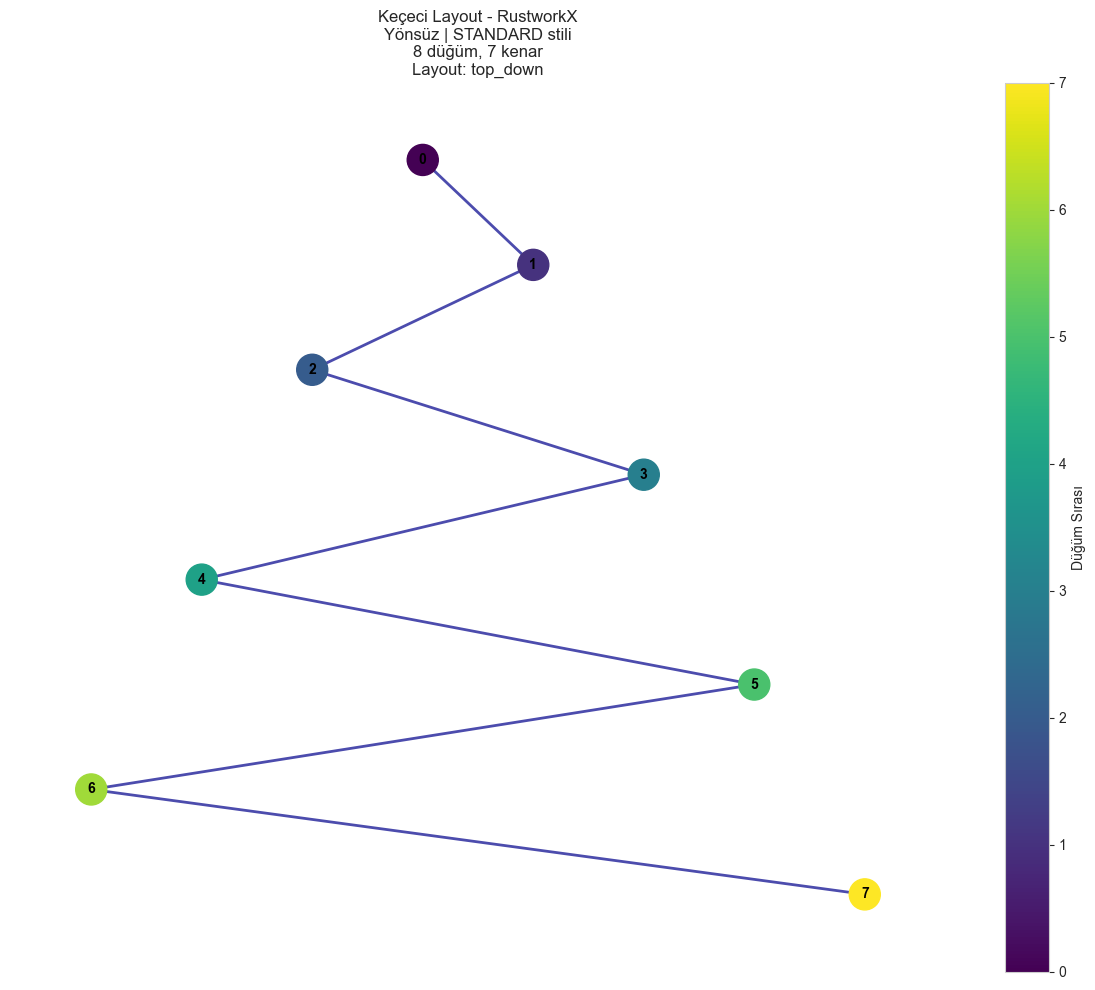

def plot_with_kececi_layout(graph: Any, library_type: int, layout_params: Dict, ax: plt.Axes, style: str = 'standard', directed: bool = False) -> Tuple:
    """Keçeci Layout ile çizim yapar."""
    nx_graph = convert_to_networkx(graph, library_type, directed)

    if nx_graph.number_of_nodes() < 2:
        if directed:
            nx_graph = nx.DiGraph([(1, 2), (2, 3), (3, 4)])
        else:
            nx_graph = nx.path_graph(4)

    edge_style = 'standard'
    if style == 'curved':
        edge_style = 'curved'
    elif style == '3d':
        edge_style = 'standard'

    if style == '3d':
        pos_3d = generate_3d_helix_layout(nx_graph)
        node_colors = list(range(len(nx_graph.nodes())))

        for i, node_id in enumerate(sorted(nx_graph.nodes())):
            if node_id in pos_3d:
                x, y, z = pos_3d[node_id]
                ax.scatter([x], [y], [z],
                          s=300,
                          c=[node_colors[i]],
                          cmap='viridis',
                          alpha=0.8,
                          depthshade=True)

                ax.text(x, y, z, f' {node_id}', fontsize=8, fontweight='bold')

        for u, v in nx_graph.edges():
            if u in pos_3d and v in pos_3d:
                x_vals = [pos_3d[u][0], pos_3d[v][0]]
                y_vals = [pos_3d[u][1], pos_3d[v][1]]
                z_vals = [pos_3d[u][2], pos_3d[v][2]]
                ax.plot(x_vals, y_vals, z_vals,
                       color='blue', alpha=0.6, linewidth=2)

        scatter = ax.scatter([], [], [], c=[], cmap='viridis')
        return scatter, nx_graph, pos_3d

    elif style == 'helix':
        nodes = sorted(list(nx_graph.nodes()))
        pos = {}

        for i, node_id in enumerate(nodes):
            angle = i * (2 * np.pi / len(nodes))
            radius = 1.0 + (i * 0.3)
            x = radius * np.cos(angle)
            y = radius * np.sin(angle)
            pos[node_id] = (x, y)

    else:
        primary_direction = layout_params.get('primary_direction', 'top_down')
        layout_params['secondary_start'] = get_secondary_start(primary_direction)

        pos = safe_kececi_layout(nx_graph, layout_params)

    node_colors = list(range(len(nx_graph.nodes())))
    nodes_viz = nx.draw_networkx_nodes(
        nx_graph, pos,
        node_color=node_colors,
        node_size=500,
        cmap='viridis',
        ax=ax
    )

    draw_edges_with_arrows(nx_graph, pos, ax, edge_style, directed)

    nx.draw_networkx_labels(nx_graph, pos, font_size=10, font_weight='bold', ax=ax)

    return nodes_viz, nx_graph, pos

def plot_3d_graph(graph: Any, library_type: int, layout_params: Dict, ax: plt.Axes) -> Tuple:
    """3D çizim yapar."""
    nx_graph = convert_to_networkx(graph, library_type)

    if nx_graph.number_of_nodes() < 2:
        nx_graph = nx.path_graph(4)

    pos_3d = generate_3d_helix_layout(nx_graph)

    node_colors = list(range(len(nx_graph.nodes())))

    for node_id, (x, y, z) in pos_3d.items():
        ax.scatter([x], [y], [z],
                  s=300,
                  c=[node_colors[node_id]],
                  cmap='viridis',
                  alpha=0.8,
                  depthshade=True)

        ax.text(x, y, z, f' {node_id}', fontsize=8, fontweight='bold')

    for u, v in nx_graph.edges():
        if u in pos_3d and v in pos_3d:
            x_vals = [pos_3d[u][0], pos_3d[v][0]]
            y_vals = [pos_3d[u][1], pos_3d[v][1]]
            z_vals = [pos_3d[u][2], pos_3d[v][2]]
            ax.plot(x_vals, y_vals, z_vals,
                   color='blue', alpha=0.6, linewidth=2)

    scatter = ax.scatter([], [], [], c=[], cmap='viridis')

    return scatter, nx_graph, pos_3d

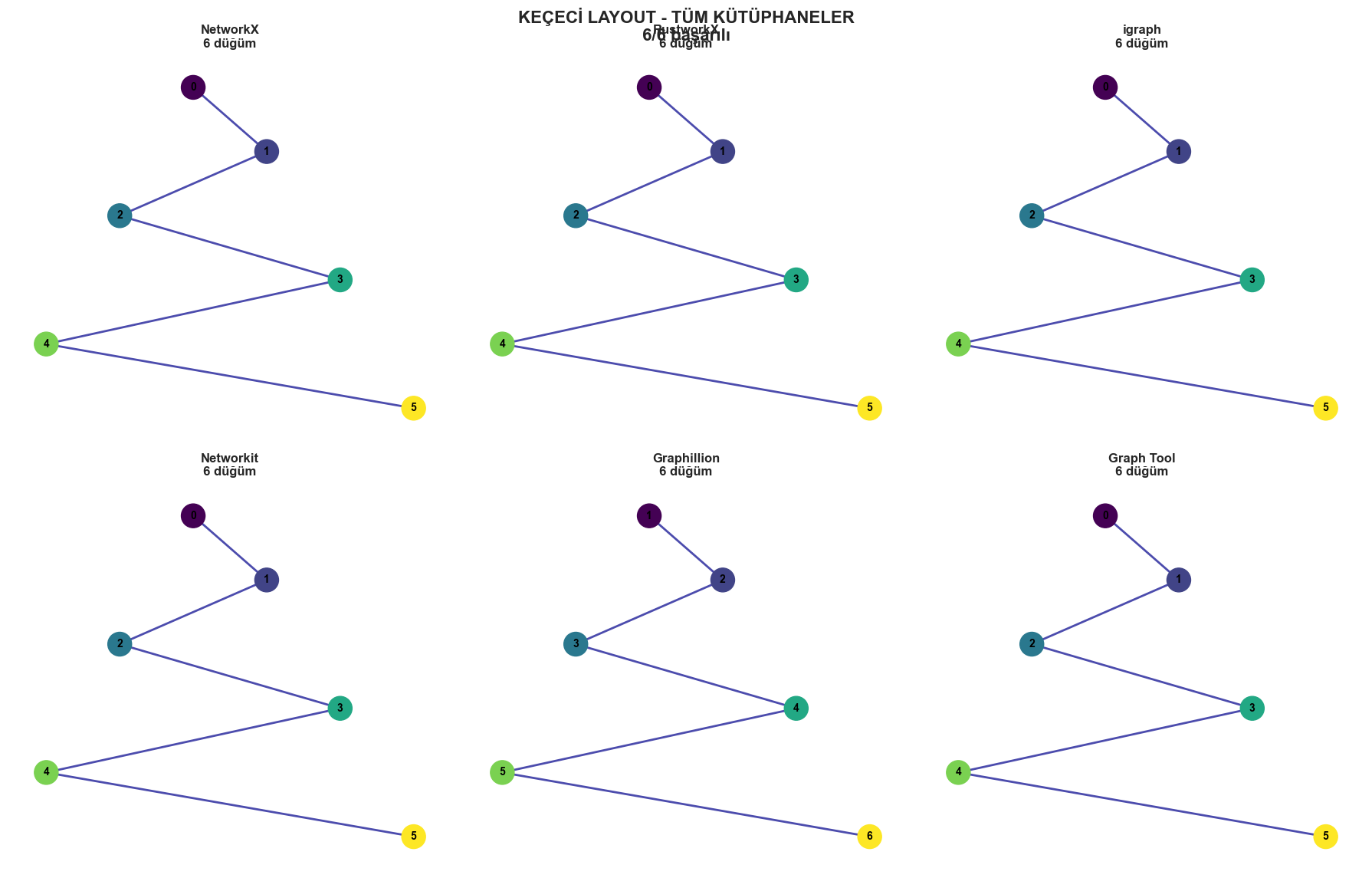

def show_library_status() -> None:
    """Kütüphane durumlarını gösterir."""
    print("\n" + "="*50)
    print("KÜTÜPHANE DURUMU")
    print("="*50)

    libraries = [
        ("NetworkX", True),
        ("RustworkX", True),
        ("igraph", True),
        ("Networkit", True),
        ("Graphillion", GRAPHILLION_AVAILABLE),
        ("Graph Tool", GRAPH_TOOL_AVAILABLE)
    ]

    for lib_name, available in libraries:
        status = "✓ KURULU" if available else "✗ KURULU DEĞİL"
        print(f"{lib_name:<15} {status}")

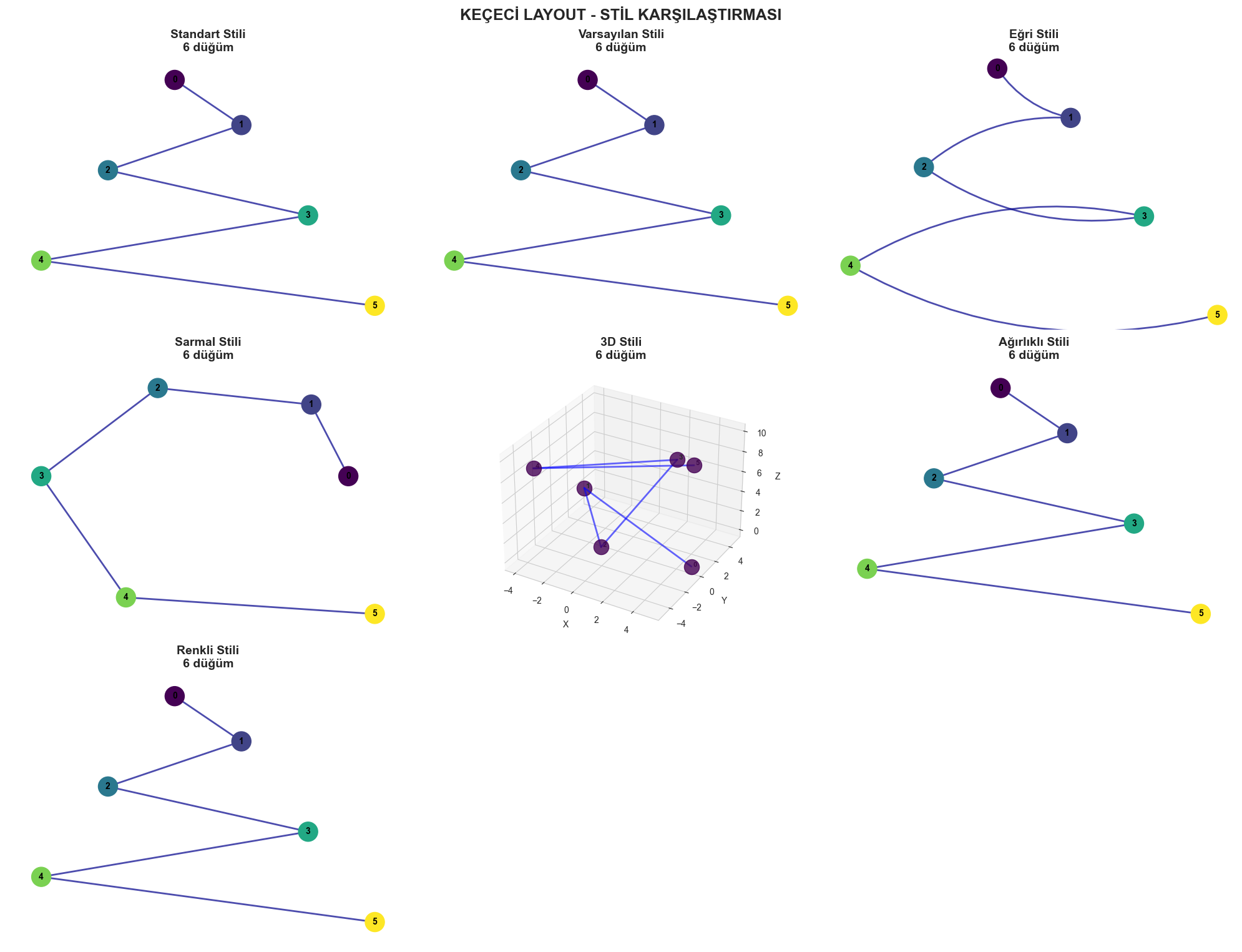

def show_style_options() -> None:
    """Çizim stillerini gösterir."""
    print("\n" + "="*40)
    print("ÇİZİM STİLLERİ")
    print("="*40)
    print("1. Standart    - Düz kenarlar")
    print("2. Varsayılan  - Düz kenarlar")
    print("3. Eğri        - Eğri kenarlar")
    print("4. Sarmal      - Sarmal düzen")
    print("5. 3D          - Üç boyutlu sarmal")
    print("6. Ağırlıklı   - Ağırlıklı kenarlar")
    print("7. Renkli      - Renkli düğümler")
    print("="*40)

def show_direction_options() -> None:
    """Yön seçeneklerini gösterir."""
    print("\n" + "="*40)
    print("YÖN SEÇENEKLERİ")
    print("="*40)
    print("1. Yönsüz      - Çift yönlü kenarlar")
    print("2. Yönlü       - Ok başlı kenarlar")
    print("="*40)

def interactive_graph_menu() -> None:
    """Interaktif graf kütüphanesi seçim menüsü."""
    while True:
        print("\n" + "="*60)
        print("KEÇECİ LAYOUT - GELİŞMİŞ MENÜ")
        print("="*60)
        print("1. Tek Kütüphane Testi")
        print("2. Tüm Kütüphaneleri Karşılaştır")
        print("3. Stil Karşılaştırması")
        print("4. Kütüphane Durumunu Göster")
        print("0. Çıkış")
        print("="*60)

        try:
            main_choice = int(input("Ana menü seçimi (0-4): "))

            if main_choice == 0:
                print("Program sonlandırılıyor...")
                break
            elif main_choice == 1:
                single_library_test()
            elif main_choice == 2:
                compare_all_libraries()
            elif main_choice == 3:
                compare_styles()
            elif main_choice == 4:
                show_library_status()
            else:
                print("Geçersiz seçim! Lütfen 0-4 arasında bir sayı girin.")

        except ValueError:
            print("Lütfen geçerli bir sayı girin!")

def single_library_test() -> None:
    """Tek kütüphane testi."""
    print("\n" + "="*50)
    print("TEK KÜTÜPHANE TESTİ")
    print("="*50)
    print("1. NetworkX")
    print("2. RustworkX")
    print("3. igraph")
    print("4. Networkit")

    if GRAPHILLION_AVAILABLE:
        print("5. Graphillion")
        max_choice = 6 if GRAPH_TOOL_AVAILABLE else 5
    else:
        print("5. Graphillion (Kurulu Değil)")
        max_choice = 5 if GRAPH_TOOL_AVAILABLE else 4

    if GRAPH_TOOL_AVAILABLE:
        print("6. Graph Tool")
    else:
        print("6. Graph Tool (Kurulu Değil)")

    print("0. Ana Menüye Dön")

    try:
        choice = int(input(f"Kütüphane seçimi (0-{max_choice}): "))

        if choice == 0:
            return
        elif choice in [1, 2, 3, 4]:
            pass
        elif choice == 5 and GRAPHILLION_AVAILABLE:
            pass
        elif choice == 6 and GRAPH_TOOL_AVAILABLE:
            pass
        else:
            print(f"Geçersiz seçim! Lütfen 0-{max_choice} arasında bir sayı girin.")
            return

        default_nodes = 8

        show_direction_options()
        dir_choice = int(input("Yön seçimi (1-2, varsayılan: 1): ") or 1)
        directed = (dir_choice == 2)

        show_style_options()
        style_choice = int(input("Stil seçimi (1-7, varsayılan: 1): ") or 1)
        styles = ['standard', 'default', 'curved', 'helix', '3d', 'weighted', 'colored']
        selected_style = styles[style_choice - 1] if 1 <= style_choice <= 7 else 'standard'

        library_names = {
            1: 'NetworkX',
            2: 'RustworkX',
            3: 'igraph',
            4: 'Networkit',
            5: 'Graphillion',
            6: 'Graph Tool'
        }

        direction_text = "Yönlü" if directed else "Yönsüz"
        print(f"\n--- {library_names[choice]} Testi ({direction_text}, {selected_style.upper()} stili) ---")

        n_nodes = int(input(f"Düğüm sayısı (varsayılan: {default_nodes}): ") or default_nodes)

        primary_spacing = float(input("Birincil aralık (varsayılan: 1.0): ") or 1.0)
        secondary_spacing = float(input("İkincil aralık (varsayılan: 0.6): ") or 0.6)

        if selected_style != '3d':
            print("Layout yönü: 1.top_down 2.bottom_up 3.left-right 4.right-left")
            dir_choice = int(input("Seçim (1-4, varsayılan: 1): ") or 1)
            directions = ['top_down', 'bottom_up', 'left-to-right', 'right-to-left']
            primary_direction = directions[dir_choice - 1] if 1 <= dir_choice <= 4 else 'top_down'
        else:
            primary_direction = 'top_down'

        layout_params = {
            'primary_spacing': primary_spacing,
            'secondary_spacing': secondary_spacing,
            'primary_direction': primary_direction,
            'expanding': True
        }

        graph = generate_sample_graph(choice, n_nodes, directed)

        if selected_style == '3d':
            fig = plt.figure(figsize=(12, 10))
            ax = fig.add_subplot(111, projection='3d')
        else:
            fig, ax = plt.subplots(figsize=(12, 10))

        nodes, nx_graph, pos = plot_with_kececi_layout(
            graph, choice, layout_params, ax, selected_style, directed
        )

        if nodes is not None and selected_style != '3d':
            plt.colorbar(nodes, ax=ax, label='Düğüm Sırası')
        elif selected_style == '3d':
            plt.colorbar(nodes, ax=ax, label='Düğüm Sırası')

        title = f'Keçeci Layout - {library_names[choice]}\n'
        title += f'{direction_text} | {selected_style.upper()} stili\n'
        title += f'{nx_graph.number_of_nodes()} düğüm, {nx_graph.number_of_edges()} kenar'

        if selected_style != '3d':
            title += f'\nLayout: {primary_direction}'

        ax.set_title(title, fontsize=12)

        if selected_style != '3d':
            ax.axis('off')
        else:
            ax.set_xlabel('X')
            ax.set_ylabel('Y')
            ax.set_zlabel('Z')

        plt.tight_layout()
        plt.show()

    except ValueError:
        print("Lütfen geçerli bir sayı girin!")
    except Exception as e:
        print(f"Hata: {e}")

def compare_directed_undirected() -> None:
    """Yönlü ve yönsüz grafikleri karşılaştırır."""
    print("\nYönlü ve yönsüz grafikler karşılaştırılıyor...")

    library_type = 1  # NetworkX kullan
    n_nodes = 6

    fig, axes = plt.subplots(1, 2, figsize=(16, 8))

    layout_params = {
        'primary_spacing': 1.0,
        'secondary_spacing': 0.6,
        'primary_direction': 'top_down',
        'expanding': True
    }

    undirected_graph = generate_sample_graph(library_type, n_nodes, directed=False)
    nodes_undir, nx_graph_undir, pos_undir = plot_with_kececi_layout(
        undirected_graph, library_type, layout_params, axes[0], 'standard', False
    )
    axes[0].set_title('Yönsüz Graf\nÇift yönlü kenarlar',
                     fontsize=14, fontweight='bold')
    axes[0].axis('off')

    directed_graph = generate_sample_graph(library_type, n_nodes, directed=True)
    nodes_dir, nx_graph_dir, pos_dir = plot_with_kececi_layout(
        directed_graph, library_type, layout_params, axes[1], 'standard', True
    )
    axes[1].set_title('Yönlü Graf\nOk başlı kenarlar',
                     fontsize=14, fontweight='bold')
    axes[1].axis('off')

    plt.suptitle('YÖNLÜ VE YÖNSÜZ GRAFİKLER KARŞILAŞTIRMASI',
                 fontsize=16, fontweight='bold', y=0.95)
    plt.tight_layout()
    plt.subplots_adjust(top=0.85)
    plt.show()

def compare_styles() -> None:
    """Farklı stilleri karşılaştırır."""
    print("\nStiller karşılaştırılıyor...")

    library_type = 1  # NetworkX kullan
    n_nodes = 6
    graph = generate_sample_graph(library_type, n_nodes)

    styles = ['standard', 'default', 'curved', 'helix', '3d', 'weighted', 'colored']
    style_names = ['Standart', 'Varsayılan', 'Eğri', 'Sarmal', '3D', 'Ağırlıklı', 'Renkli']

    fig = plt.figure(figsize=(20, 16))

    layout_params = {
        'primary_spacing': 1.0,
        'secondary_spacing': 0.6,
        'primary_direction': 'top_down',
        'expanding': True
    }

    for idx, (style, style_name) in enumerate(zip(styles, style_names)):
        if style == '3d':
            ax = fig.add_subplot(3, 3, idx+1, projection='3d')
        else:
            ax = fig.add_subplot(3, 3, idx+1)

        try:
            nodes, nx_graph, pos = plot_with_kececi_layout(graph, library_type, layout_params, ax, style)

            ax.set_title(f'{style_name} Stili\n{nx_graph.number_of_nodes()} düğüm',
                        fontsize=14, fontweight='bold')

            if style != '3d':
                ax.axis('off')
            else:
                ax.set_xlabel('X')
                ax.set_ylabel('Y')
                ax.set_zlabel('Z')

        except Exception as e:
            print(f"{style_name} stili için hata: {e}")
            ax.clear()
            ax.text(0.5, 0.5, f'{style_name}\nHATA', ha='center', va='center', fontsize=12, color='red', weight='bold')
            ax.set_title(f'{style_name} - Hata', fontsize=12)
            if style != '3d':
                ax.axis('off')

    plt.suptitle('KEÇECİ LAYOUT - STİL KARŞILAŞTIRMASI', fontsize=18, fontweight='bold', y=0.95)
    plt.tight_layout()
    plt.subplots_adjust(top=0.90)
    plt.show()

def compare_all_libraries() -> None:
    """Tüm kütüphaneleri karşılaştırır."""
    print("\nTüm kütüphaneler karşılaştırılıyor...")

    libraries = []
    if GRAPHILLION_AVAILABLE:
        libraries = [(1, 'NetworkX'), (2, 'RustworkX'), (3, 'igraph'), (4, 'Networkit'), (5, 'Graphillion')]
    else:
        libraries = [(1, 'NetworkX'), (2, 'RustworkX'), (3, 'igraph'), (4, 'Networkit')]

    if GRAPH_TOOL_AVAILABLE:
        libraries.append((6, 'Graph Tool'))

    n_nodes = 6
    layout_params = {'primary_spacing': 1.0, 'secondary_spacing': 0.6, 'primary_direction': 'top_down', 'expanding': True}

    fig, axes = plt.subplots(2, 3, figsize=(18, 12))
    axes = axes.flatten()

    successful_plots = 0

    for idx, (lib_type, lib_name) in enumerate(libraries):
        if idx >= len(axes):
            break

        try:
            ax = axes[idx]
            print(f"{lib_name}...", end=" ")
            graph = generate_sample_graph(lib_type, n_nodes)

            nodes, nx_graph, pos = plot_with_kececi_layout(graph, lib_type, layout_params, ax)

            ax.set_title(f'{lib_name}\n{nx_graph.number_of_nodes()} düğüm', fontsize=12, fontweight='bold')
            ax.axis('off')
            successful_plots += 1
            print("✓")

        except Exception as e:
            print(f"✗ ({e})")
            axes[idx].clear()
            axes[idx].text(0.5, 0.5, f'{lib_name}\nHATA', ha='center', va='center',
                          fontsize=10, color='red', weight='bold')
            axes[idx].set_title(f'{lib_name} - Hata', fontsize=10)
            axes[idx].axis('off')

    for idx in range(len(libraries), len(axes)):
        axes[idx].axis('off')

    plt.suptitle(f'KEÇECİ LAYOUT - TÜM KÜTÜPHANELER\n{successful_plots}/{len(libraries)} başarılı', fontsize=16, fontweight='bold', y=0.95)
    plt.tight_layout()
    plt.subplots_adjust(top=0.90)
    plt.show()

# Main program
if __name__ == "__main__":
    print("🚀 KEÇECİ LAYOUT - GELİŞMİŞ GÖRSELLEŞTİRME")
    print("="*60)
    print("Özellikler: Yönlü/Yönsüz grafikler, Eğri, Sarmal, 3D")
    print("Graphillion tam destek - sınırsız düğüm")
    show_library_status()
    interactive_graph_menu()
